Details MEVD17.4.4 |
 |
Informationen| Bemerkung | TPROT13 | | BSL130 | ja | | BSL131 | ja | | BSL132 | ja | | BSL-ADP | erforderlich |
| Pinbelegung| Verwendung | Stecker - Pin | | 12V | M1 - Pin 18 | | Ign | M1 - Pin 29 | | Gnd | M1 - Pin 4 | | Can+ | M1 - Pin 40 | | Can- | M1 - Pin 52 | | S1 | M2 - Pin E2 | | S2 | M2 - Pin H2 |

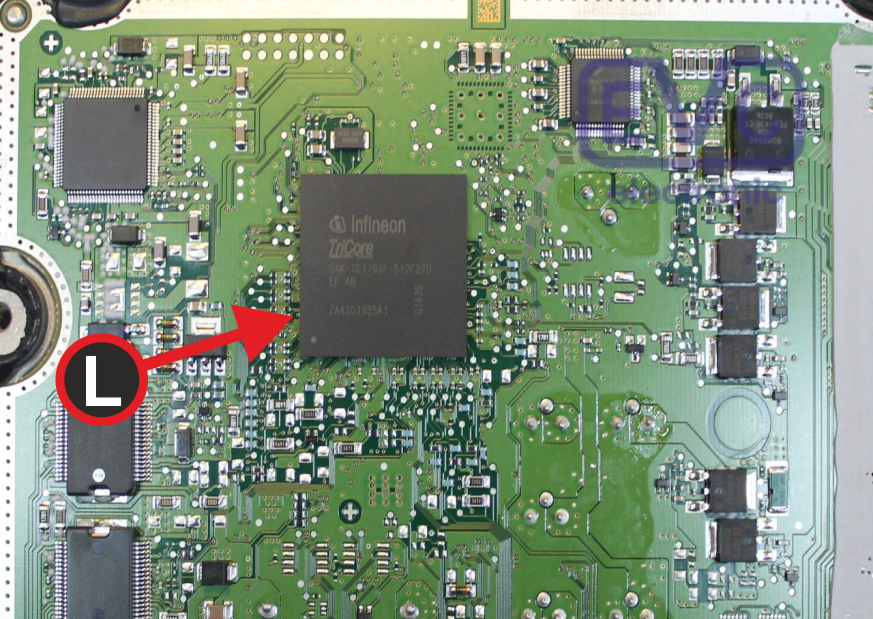

| Bilder |  |  |
|
