Details MED17.4 TC1796

Information

RemarkOnly the Flash Eprom can be read and programmed. Therefore the option "only Eprom" must be selected.
BSL130yes
BSL131yes
BSL132yes
BSL-ADPnot required

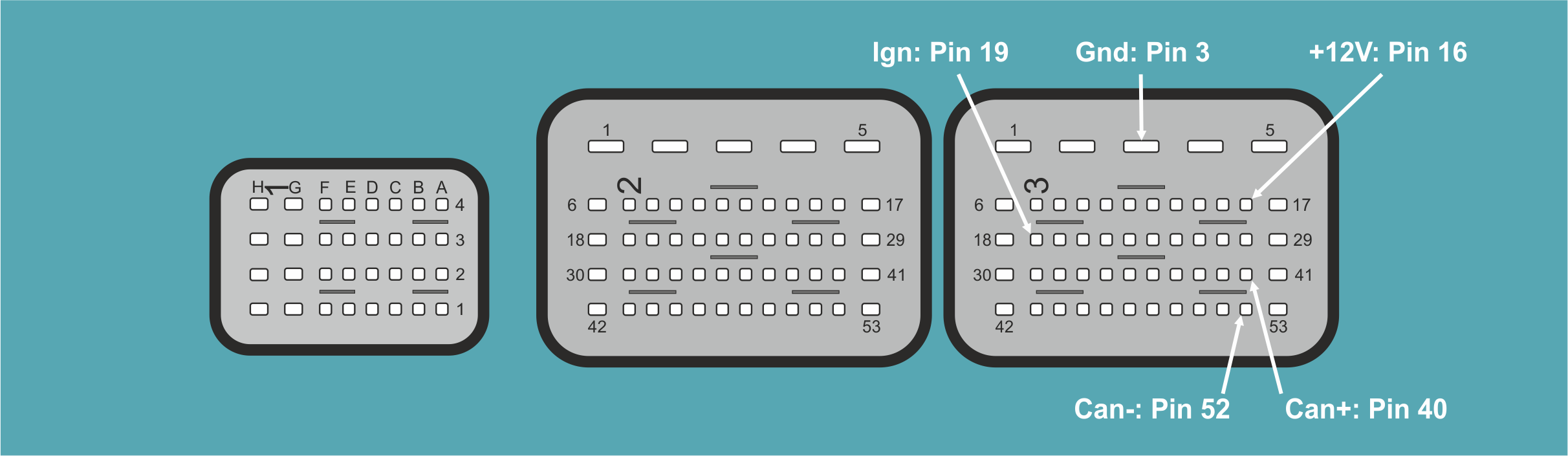

ECU pins

UsePlug - Pin
12V3 - Pin 19
Ign3 - Pin 16
Gnd3 - Pin 3
Can+3 - Pin 40
Can-3 - Pin 52

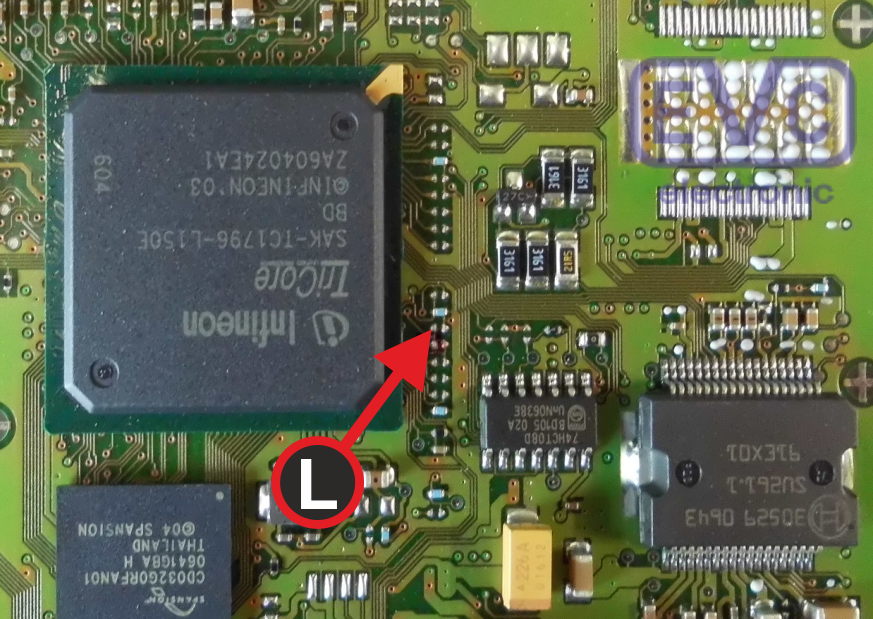

Pictures
