Details MED17.8.31

Information

RemarkConnect both CAN busses parallel

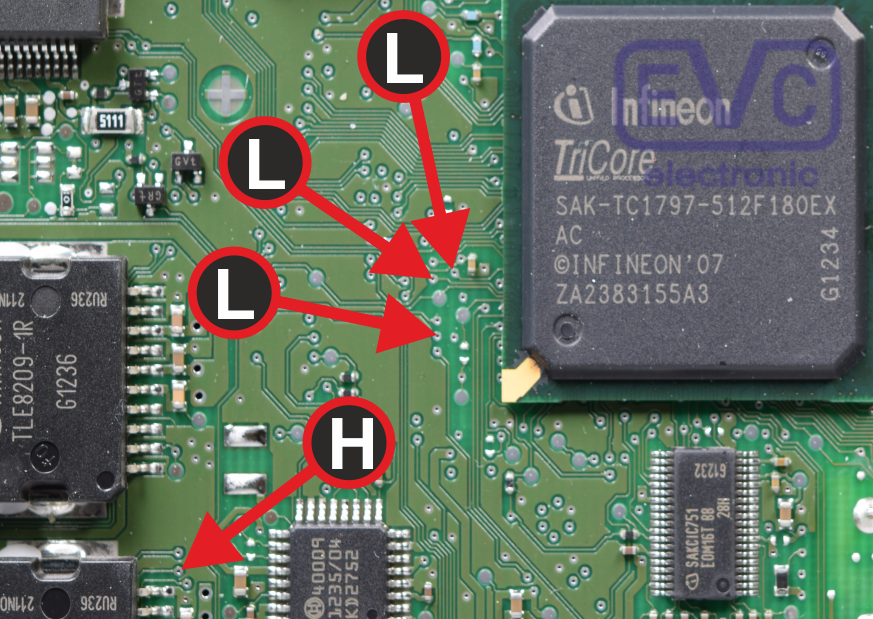

BSL130no
BSL131yes
BSL132no
BSL-ADPrequired

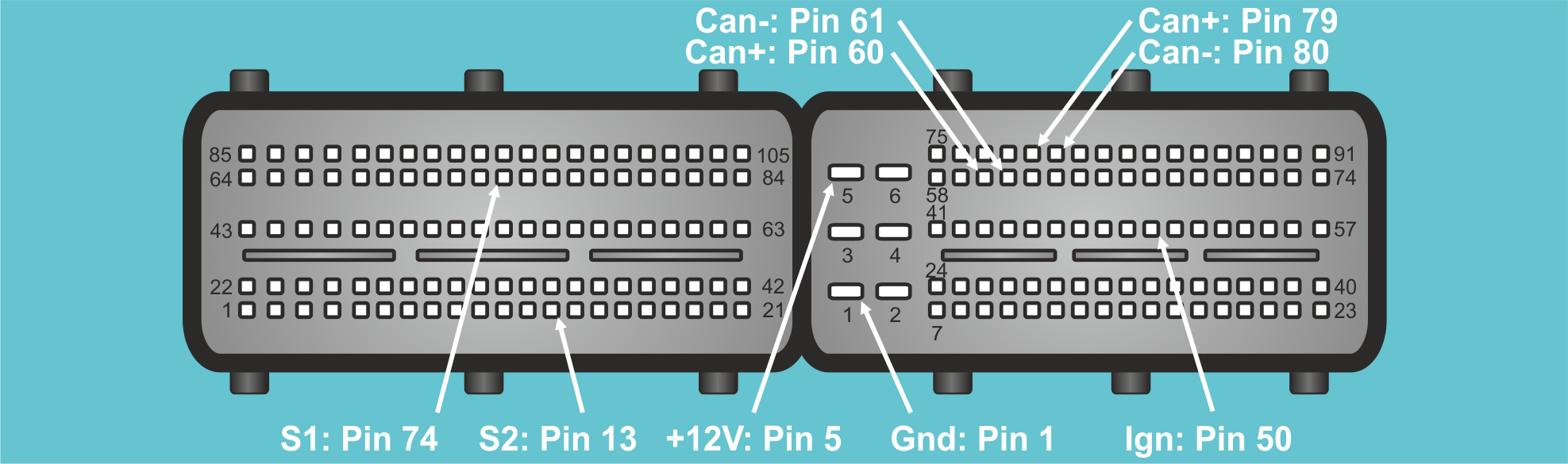

ECU pins

UsePlug - Pin
12VT91 - Pin 5
IgnT91 - Pin 50
GndT91 - Pin 1
Can+T91 - Pin 60 + Pin 79
Can-T91 - Pin 61 + Pin 80
S1T105 - Pin 13
S2T105 - Pin 74
